Pi.Alert

WIFI / LAN intruder detector.

Scan the devices connected to your WIFI / LAN and alert you the connection of unknown devices. It also warns if a "always connected" devices disconnects.

Docker image 🐳

🐳 Docker hub: jokobsk/Pi.Alert
📄 Dockerfile
📚 Docker instructions

Dark mode (and much more) within this fork courtesy of leiweibau

How it works

The system continuously scans the network for:

• New devices
• New connections (re-connections)
• Disconnections
• "Always Connected" devices down
• Devices IP changes
• Internet IP address changes

Scan Methods

Up to three scanning methods are used:

• Method 1: arp-scan. The arp-scan system utility is used to search for devices on the network using arp frames.
• Method 2: Pi-hole. This method is optional and complementary to method 1. If the Pi-hole DNS server is active, Pi.Alert examines its activity looking for active devices using DNS that have not been detected by method 1.
• Method 3. dnsmasq. This method is optional and complementary to the previous methods. If the DHCP server dnsmasq is active, Pi.Alert examines the DHCP leases (addresses assigned) to find active devices that were not discovered by the other methods.

Notification Service Support

• Apprise
• Pushsafer
• NTFY
• Webhooks (sample JSON)
• (❗Experimental) Home Assistant (via MQTT (processing ~5s per device, deleting not supported, use MQTT Explorer for now))

Security

There is a configurable login to prevent unauthorized use.

• Set PIALERT_WEB_PROTECTION = True in pialert.conf to enable. The default password is 123456. To change password run /home/pi/pialert/back/pialert-cli

Features

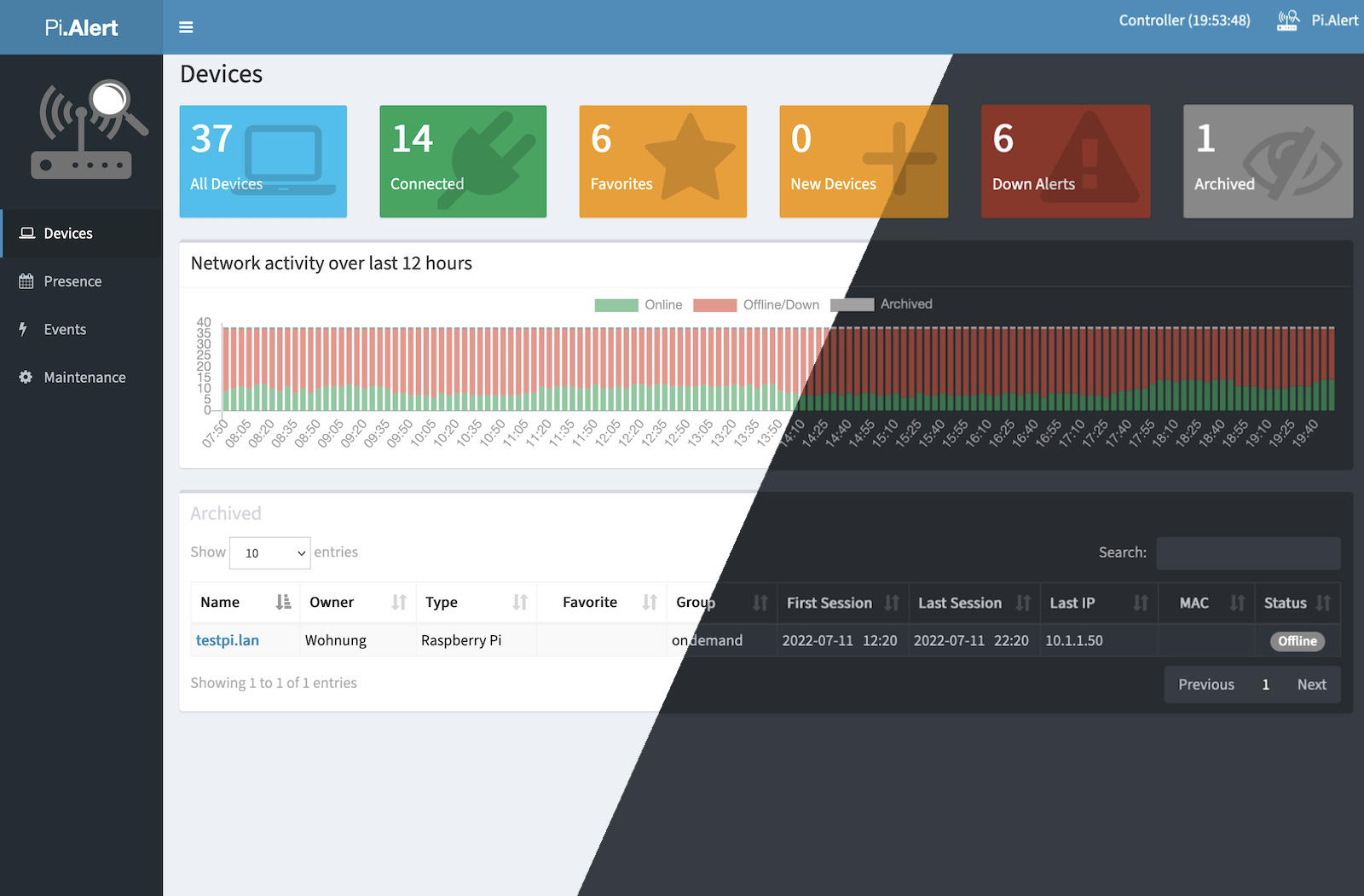

• Display in a visual way all the information collected by the back

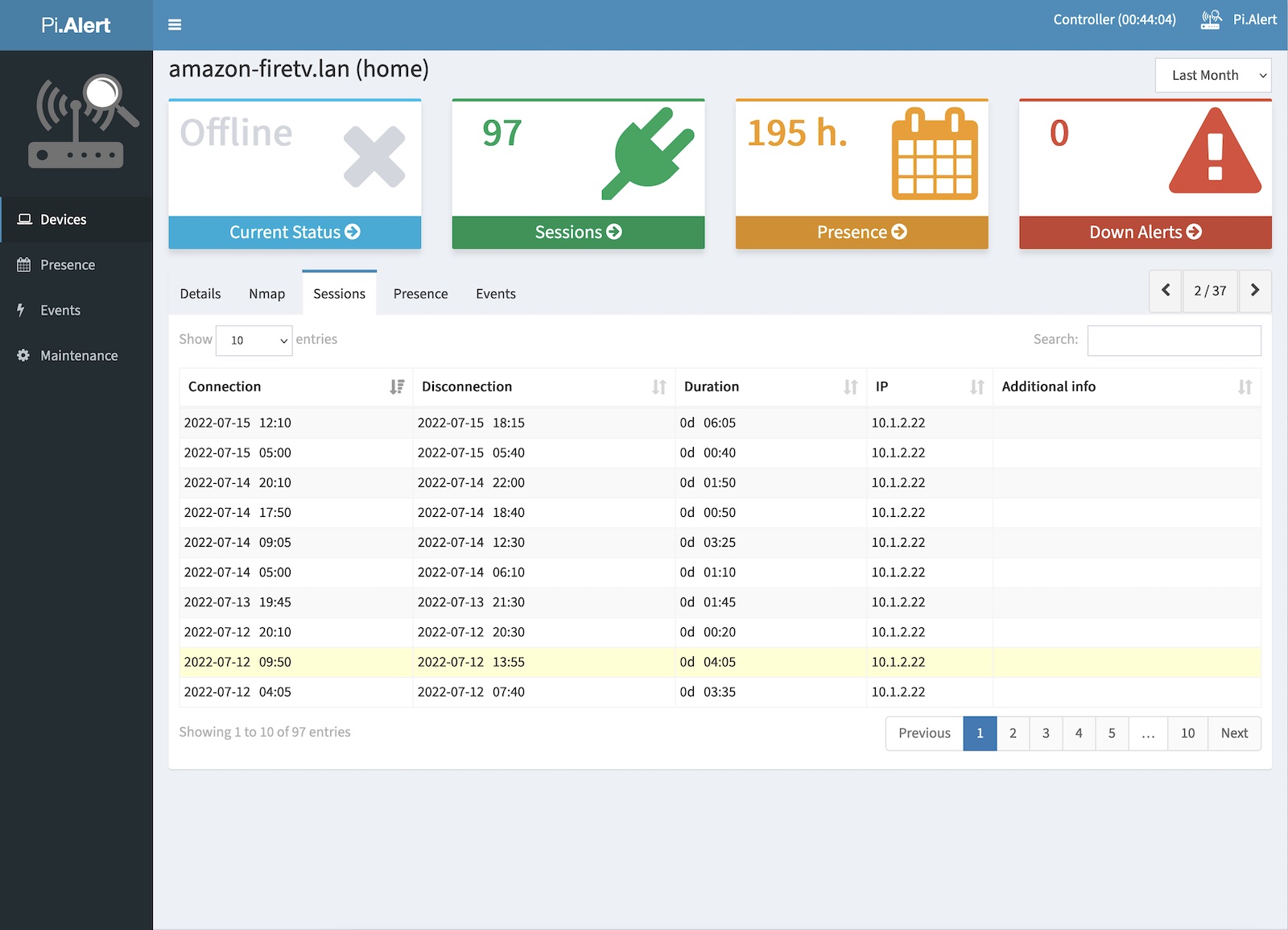

  • Sessions, Connected devices, Favorites

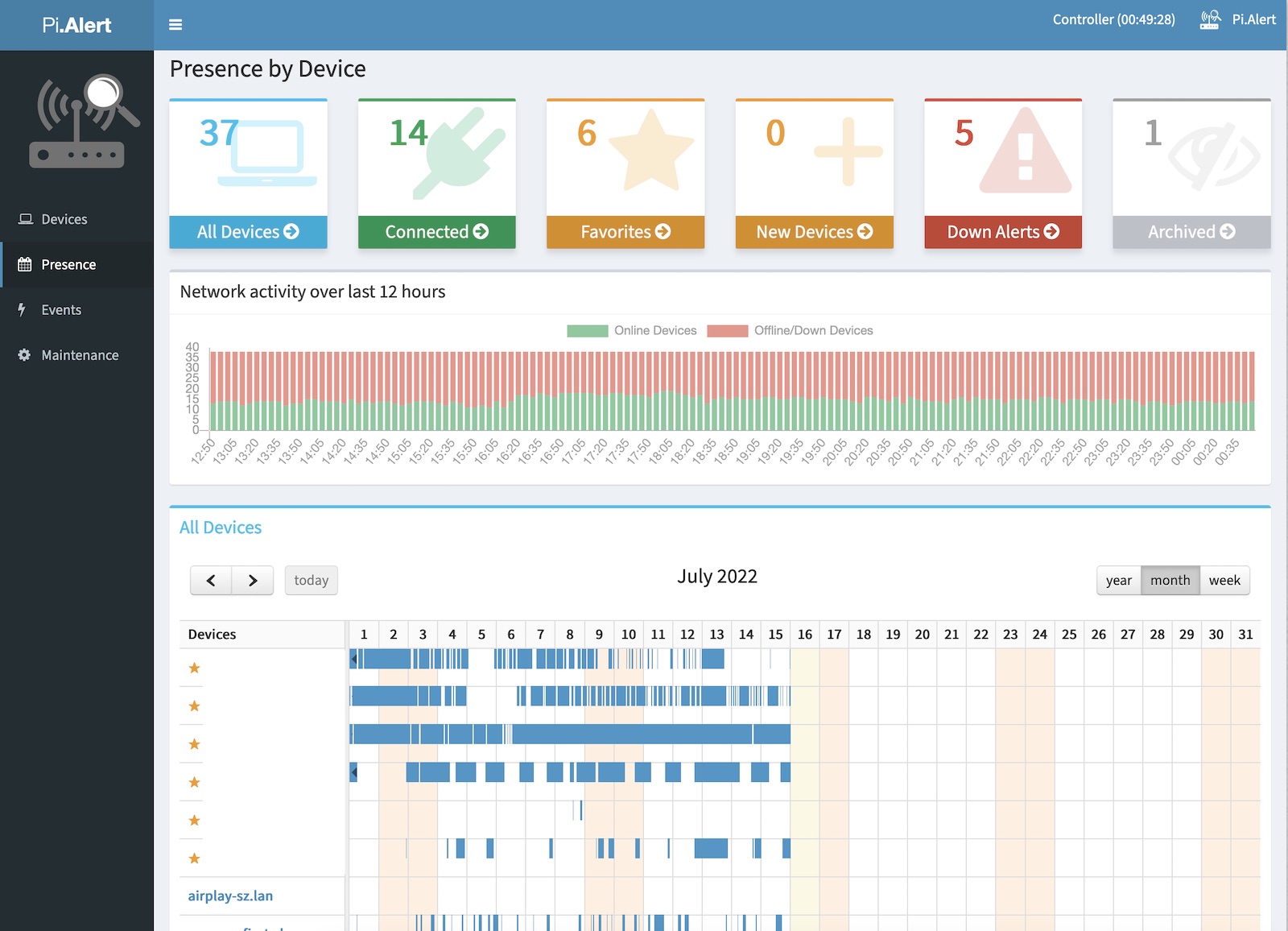

  • Events, Presence, Concurrent devices
  • Down alerts
  • IP's

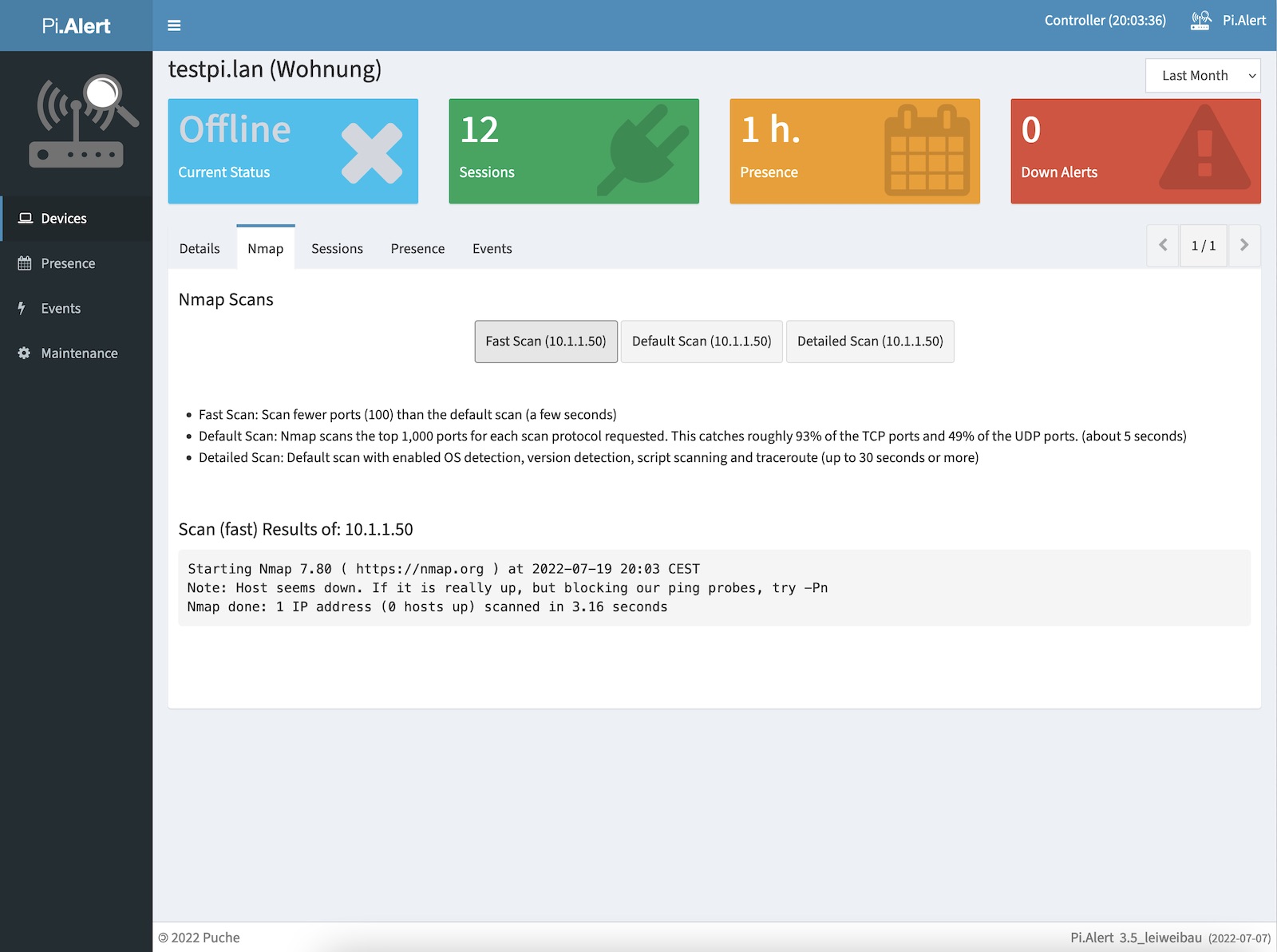

  • Manual Nmap scans, Optional speedtest for Device "Internet"

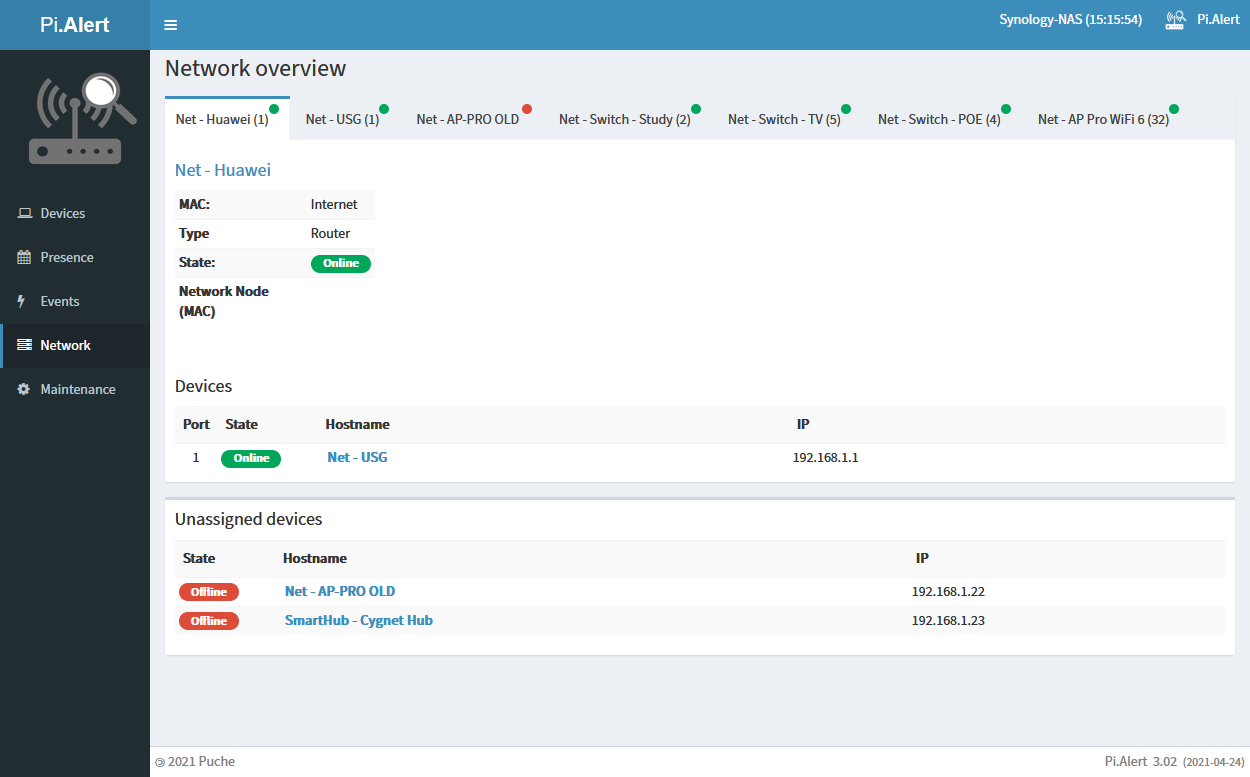

  • Simple Network relationship display
• Maintenance tasks and Settings like:
  • Status Infos (active scans, database size, backup counter)
  • Theme Selection (blue, red, green, yellow, black, purple)
  • Language Selection (english, german, spanish)
  • Light/Dark-Mode Switch
  • Pause arp-scan
  • DB maintenance, Backup, Restore tools
  • CSV Export / Import
• Help/FAQ Section

Installation

Initially designed to run on a Raspberry Pi, probably it can run on many other Linux distributions.

⚠ Please note, this fork (jokob-sk) is only tested via the docker install method. Check out leiweibau's fork if you want to install Pi.Alert on the server directly.

Instructions for pucherot's original code can be found here

Device Management

• Device Management instructions

Other useful info

Versions History

License

GPL 3.0 Read more here

Source of the animated GIF (Loading Animation) https://commons.wikimedia.org/wiki/File:Loading_Animation.gif

Source of the selfhosted Fonts https://github.com/adobe-fonts/source-sans

Special thanks 🥇

This code is a collaborative body of work, with special thanks to:

• 🏆 pucherot/Pi.Alert is the original creator od PiAlert
• leiweibau: Things
• Macleykun: Help with Dockerfile clean-up
• Final-Hawk: Help with NTFY, styling and other fixes
• TeroRERO: Spanish translation
• jokob-sk: DB Maintenance tools
• Please see the Git commit history for a full list of people and their contributions to the project
