NetAlertX/front/plugins/sync

Overview

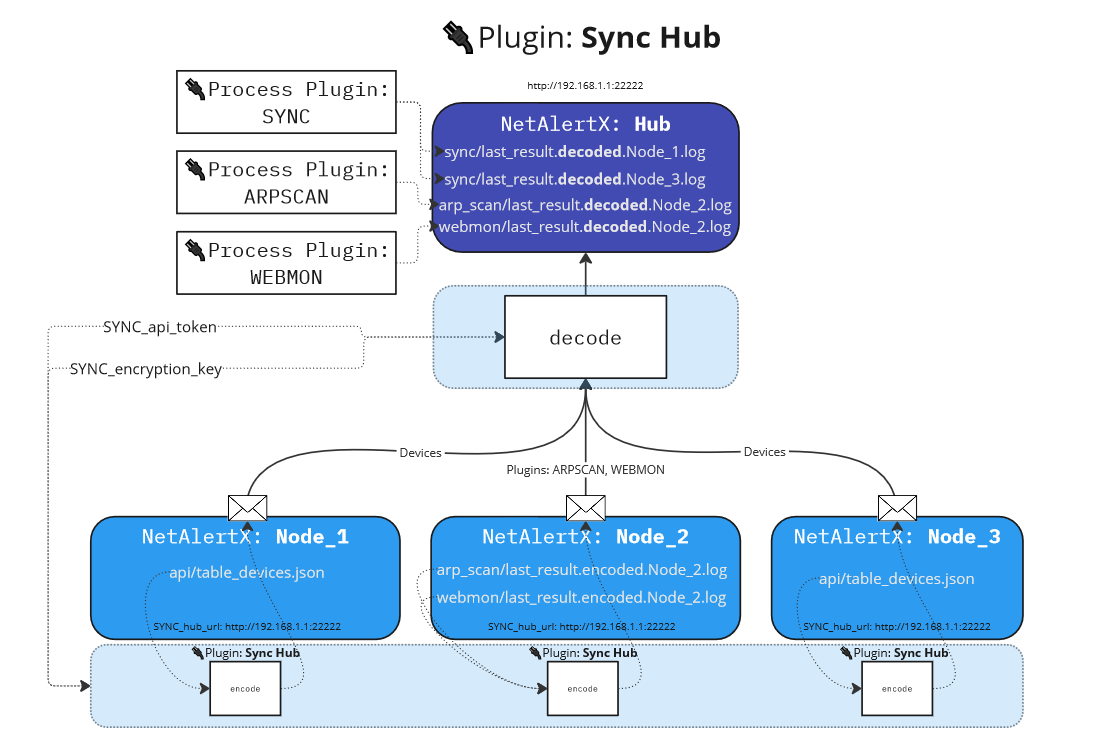

The synchronization plugin is designed to synchronize data across multiple instances of the app. It supports the following data synchronization modes:

1. 💻 Devices: Sends an encrypted table_devices.json file to synchronize the entire Devices database table.
2. 🔌 Plugin Data: Sends encrypted last_result.log files for individual plugins.

Note: [n] indicates a setting specified for the node instance, and [n,h] indicates a setting used on both the node and the hub instances.

Synchronization Modes

The plugin operates in three different modes based on the configuration settings:

1. Mode 1: PUSH (NODE) - Sends data from the node to the hub.

   • This mode is activated if SYNC_hub_url is set and either SYNC_devices or SYNC_plugins is enabled.
   • Actions:
     • Sends table_devices.json to the hub if SYNC_devices is enabled.
     • Sends individual plugin last_result.log files to the hub if SYNC_plugins is enabled.

2. Mode 2: PULL (HUB) - Retrieves data from nodes to the hub.

   • This mode is activated if SYNC_nodes is set.
   • Actions:
     • Retrieves data from configured nodes using the API and saves it locally for further processing.

3. Mode 3: RECEIVE (HUB) - Processes received data on the hub.

   • Activated when data is received in Mode 2 and is ready to be processed.
   • Actions:
     • Decodes received data files, processes them, and updates the Devices table accordingly.

Settings

Node (Source) Settings [n]

• When to Run [n,h]: SYNC_RUN
• Schedule [n,h]: SYNC_RUN_SCHD
• API Token [n,h]: SYNC_api_token
• Encryption Key [n,h]: SYNC_encryption_key
• Node Name [n]: SYNC_node_name
• Hub URL [n]: SYNC_hub_url
• Sync Devices [n]: SYNC_devices
• Sync Plugins [n]: SYNC_plugins

Hub (Target) Settings [h]

• When to Run [n,h]: SYNC_RUN
• Schedule [n,h]: SYNC_RUN_SCHD
• API Token [n,h]: SYNC_api_token
• Encryption Key [n,h]: SYNC_encryption_key
• Nodes to Pull From [h]: SYNC_nodes

Usage

1. Adjust Settings:
   • Navigate to Settings > Sync Hub to modify default settings.
2. Data Flow:
   • Nodes send or receive data based on the specified modes, either pushing data to the hub or pulling from nodes.

Notes

• Existing devices on the hub will not be updated by the data received from this SYNC plugin if their MAC addresses are already present.
• It is recommended to use Device synchronization primarily. Plugin data synchronization is more suitable for specific use cases.
