README.md

Overview

The synchronization plugin is designed to synchronize data across multiple instances of the app. It supports the following data synchronization modes:

  1. 💻 Devices: Sends an encrypted table_devices.json file to synchronize the entire Devices database table.
  2. 🔌 Plugin Data: Sends encrypted last_result.log files for individual plugins.

Note: [n] indicates a setting specified for the node instance, and [n,h] indicates a setting used on both the node and the hub instances.

Synchronization Modes

The plugin operates in three different modes based on the configuration settings:

  1. Mode 1: PUSH (NODE) - Sends data from the node to the hub.

    • This mode is activated if SYNC_hub_url is set and either SYNC_devices or SYNC_plugins is enabled.
    • Actions:
      • Sends table_devices.json to the hub if SYNC_devices is enabled.
      • Sends individual plugin last_result.log files to the hub if SYNC_plugins is enabled.

  2. Mode 2: PULL (HUB) - Retrieves data from nodes to the hub.

    • This mode is activated if SYNC_nodes is set.
    • Actions:
      • Retrieves data from configured nodes using the API and saves it locally for further processing.

  3. Mode 3: RECEIVE (HUB) - Processes received data on the hub.

    • Activated when data is received in Mode 2 and is ready to be processed.
    • Actions:
      • Decodes received data files, processes them, and updates the Devices table accordingly.

Settings

Node (Source) Settings [n]

  • When to Run [n,h]: SYNC_RUN
  • Schedule [n,h]: SYNC_RUN_SCHD
  • API Token [n,h]: SYNC_api_token
  • Encryption Key [n,h]: SYNC_encryption_key
  • Node Name [n]: SYNC_node_name
  • Hub URL [n]: SYNC_hub_url
  • Sync Devices [n]: SYNC_devices
  • Sync Plugins [n]: SYNC_plugins

Hub (Target) Settings [h]

  • When to Run [n,h]: SYNC_RUN
  • Schedule [n,h]: SYNC_RUN_SCHD
  • API Token [n,h]: SYNC_api_token
  • Encryption Key [n,h]: SYNC_encryption_key
  • Nodes to Pull From [h]: SYNC_nodes

Usage

  1. Adjust Settings:
    • Navigate to Settings > Sync Hub to modify default settings.
  2. Data Flow:
    • Nodes send or receive data based on the specified modes, either pushing data to the hub or pulling from nodes.

Notes

  • Existing devices on the hub will not be updated by the data received from this SYNC plugin if their MAC addresses are already present.
  • It is recommended to use Device synchronization primarily. Plugin data synchronization is more suitable for specific use cases.

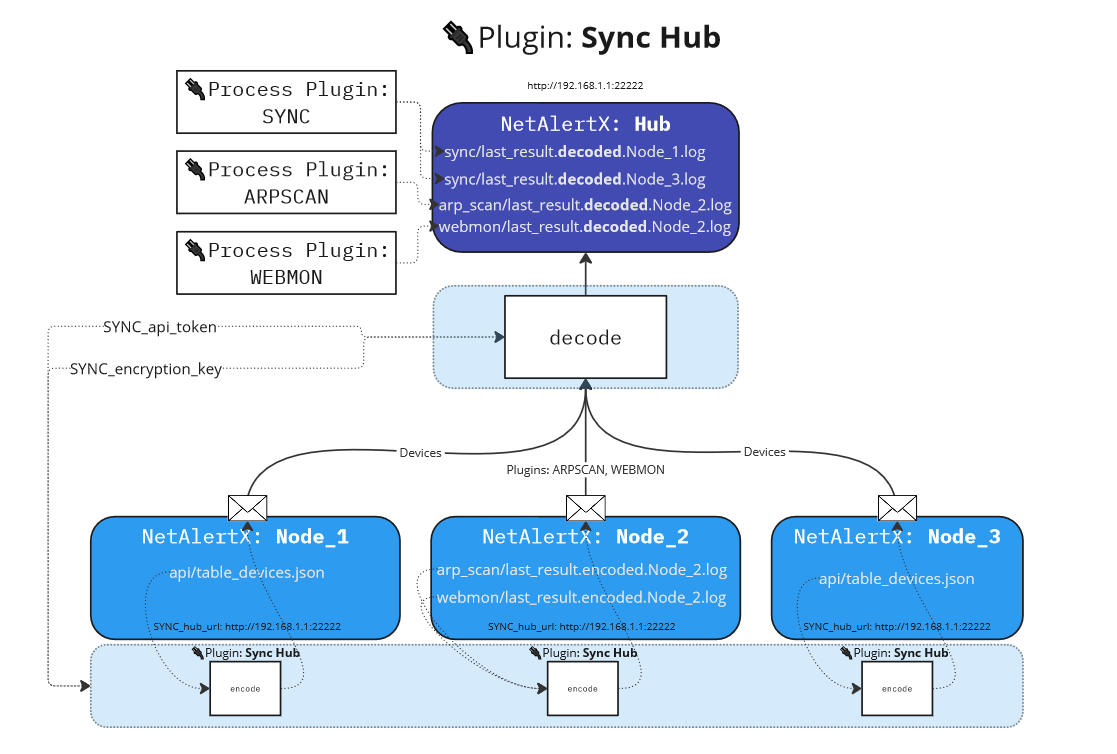

Sync Hub Setup Diagram

Example use case: Network Setup with Multiple VLANs and VM Scanning

Thank you to @richtj999 for the use case 🙏

I have 6 VLANs, all isolated by a firewall, except for one VLAN that has access to all the others.

Initially, I had one virtual machine (VM) with 6 network cards, one for each VLAN. While this setup worked, it introduced delays due to other concurrent scans. To optimize this, I switched to a multi-VM setup:

  • I created 6 VMs, each attached to a single VLAN.
  • One VM acts as the "server," and the other 5 as "clients."
  • The server has access to all VLANs (via firewall rules) and collects data from the client VMs, which each scan their own VLAN.

Summary

  • Single VM on six VLANs: Slower because one VM scans all networks.
  • Six VMs on six VLANs: Faster because each VM scans its own network, sending the results to the server.

Example Setup

  • VM1 ("Server"): Network 1 (can access all networks) - IP: 10.10.10.106
    Receives data from all NetAlertX clients and scans network 1.

  • VM2 ("Client"): Network 2 (can access only network 2) - IP: 192.168.x.x
    Scans network 2; VM1 retrieves this data.

  • VM3 ("Client"): Network 3 (can access only network 3) - IP: 192.168.x.x
    Scans network 3; VM1 retrieves this data.

  • VM4 ("Client"): Network 4 (can access only network 4) - IP: 192.168.x.x
    Scans network 4; VM1 retrieves this data.

  • VM5 ("Client"): Network 5 (can access only network 5) - IP: 192.168.x.x
    Scans network 5; VM1 retrieves this data.

  • VM6 ("Client"): Network 6 (can access only network 6) - IP: 192.168.x.x
    Scans network 6; VM1 retrieves this data.

How to Set It Up

Server (VM1)
  1. Go to Settings > System > Sync Hub.
  2. Set the schedule (5 minutes works for me).
  3. API Token: Use any string, but it must match the clients (e.g., abc123).
  4. Encryption Key: Use any string, but it must match the clients (e.g., abc123).
  5. Under Nodes, add the full URL for each client, e.g., http://192.168.1.20.20211/.
  6. Node Name: Leave blank.
  7. Check Sync Devices.
Clients (VM2, VM3, VM4, VM5, VM6)
  1. Go to Settings > System > Sync Hub.
  2. Set When to run to "Always after scan."
  3. API Token: Use the same token as the server (e.g., abc123).
  4. Encryption Key: Use the same key as the server (e.g., abc123).
  5. Leave Nodes blank.
  6. Set Node Name to a unique, memorable name for each client.
  7. Check Sync Devices.
