NetAlertX/docs/DATABASE.md

A high-level description of the database structure

⚠ Disclaimer: As I'm not the original author, some of the information might be inaccurate. Feel free to submit a PR to correct anything within this page or documentation in general.

The MAC address is used as a foreign key in most cases.

Devices database table

Field Name	Description
devMac	MAC address of the device.
devName	Name of the device.
devOwner	Owner of the device.
devType	Type of the device (e.g., phone, laptop, etc.). If set to a network type (e.g.: switch), it will become selectable as a Network Parent Node
devVendor	Vendor/manufacturer of the device.
devFavorite	Whether the device is marked as a favorite.
devGroup	Group the device belongs to.
devComments	User comments or notes about the device.
devFirstConnection	Timestamp of the device's first connection.
devLastConnection	Timestamp of the device's last connection.
devLastIP	Last known IP address of the device.
devStaticIP	Whether the device has a static IP address.
devScan	Whether the device should be scanned.
devLogEvents	Whether events related to the device should be logged.
devAlertEvents	Whether alerts should be generated for events.
devAlertDown	Whether an alert should be sent when the device goes down.
devSkipRepeated	Whether to skip repeated alerts for this device.
devLastNotification	Timestamp of the last notification sent for this device.
devPresentLastScan	Whether the device was present during the last scan.
devIsNew	Whether the device is marked as new.
devLocation	Physical or logical location of the device.
devIsArchived	Whether the device is archived.
devParentMAC	MAC address of the parent device (if applicable).
devParentPort	Port of the parent device to which this device is connected.
devIcon	Icon representing the device.
devGUID	Unique identifier for the device.
devSite	Site or location where the device is registered.
devSSID	SSID of the Wi-Fi network the device is connected to.
devSyncHubNode	The NetAlertX node ID used for synchronization between NetAlertX instances.
devSourcePlugin	Source plugin that discovered the device.

To understand how values of these fields influuence application behavior, such as Notifications or Network topology, see also:

• Device Management
• Network Tree Topology Setup
• Notifications

Other Tables overview

Table name	Description	Sample data
CurrentScan	Result of the current scan

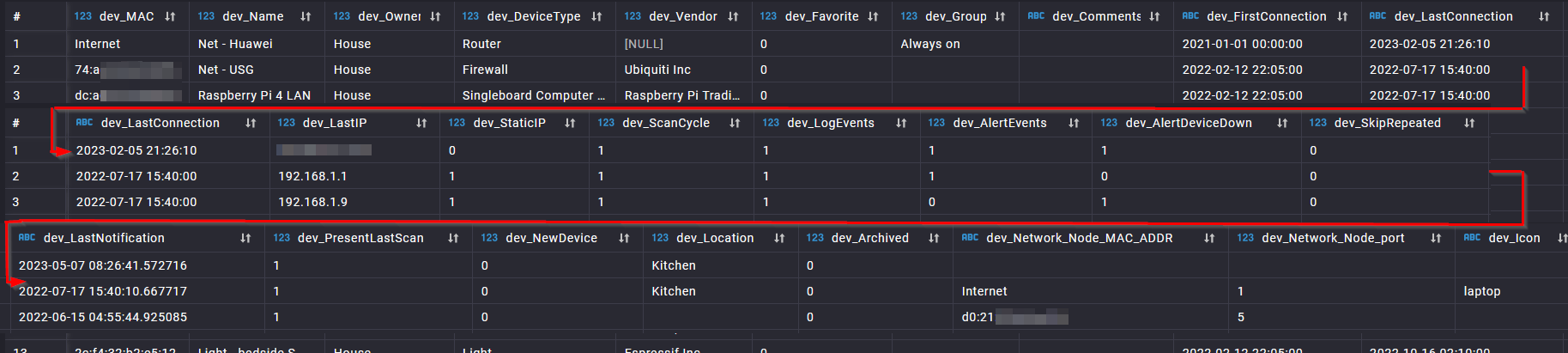

Devices	The main devices database that also contains the Network tree mappings. If ScanCycle is set to 0 device is not scanned.

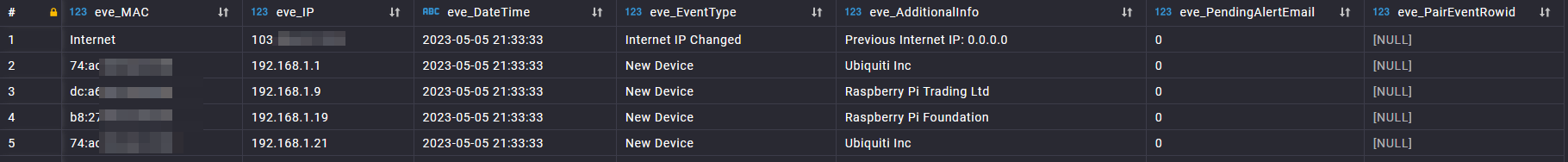

Events	Used to collect connection/disconnection events.

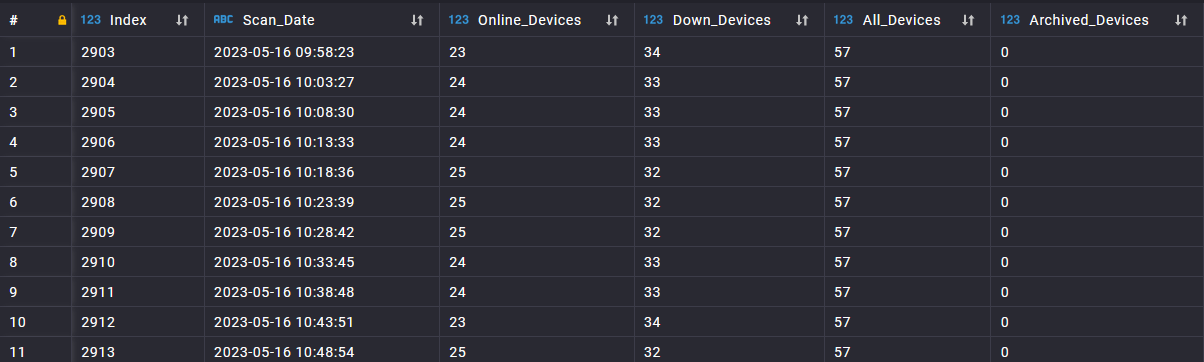

Online_History	Used to display the Device presence chart

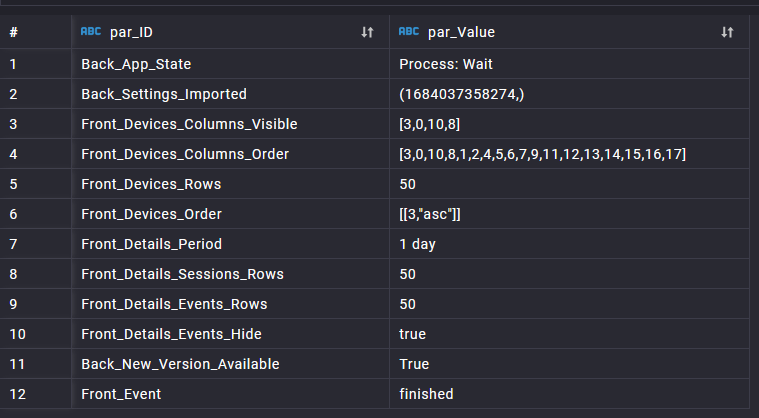

Parameters	Used to pass values between the frontend and backend.
Plugins_Events	For capturing events exposed by a plugin via the last_result.log file. If unique then saved into the Plugins_Objects table. Entries are deleted once processed and stored in the Plugins_History and/or Plugins_Objects tables.

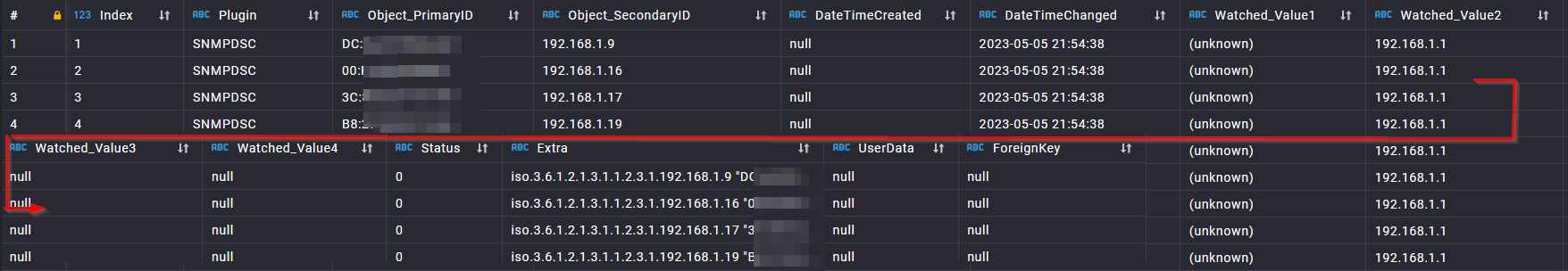

Plugins_History	History of all entries from the Plugins_Events table
Plugins_Language_Strings	Language strings collected from the plugin config.json files used for string resolution in the frontend.

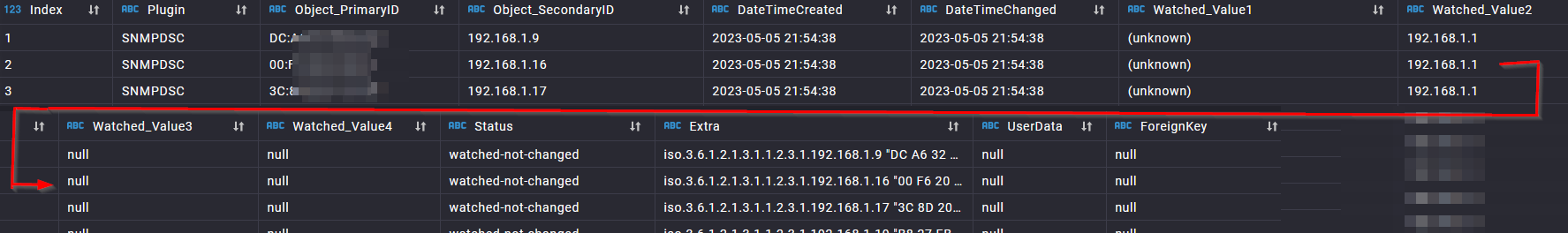

Plugins_Objects	Unique objects detected by individual plugins.

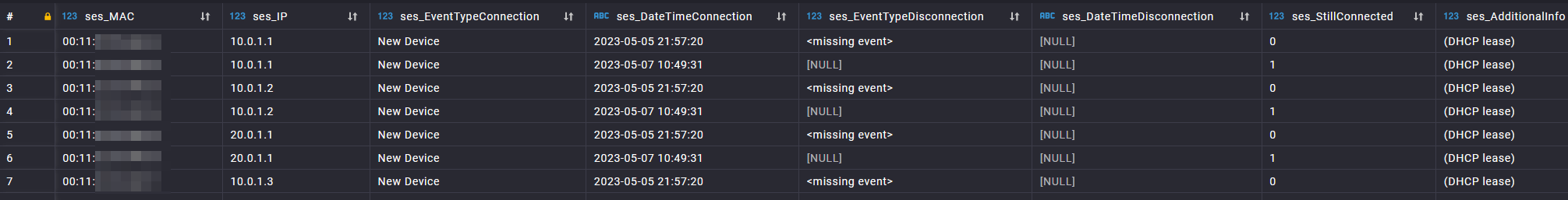

Sessions	Used to display sessions in the charts

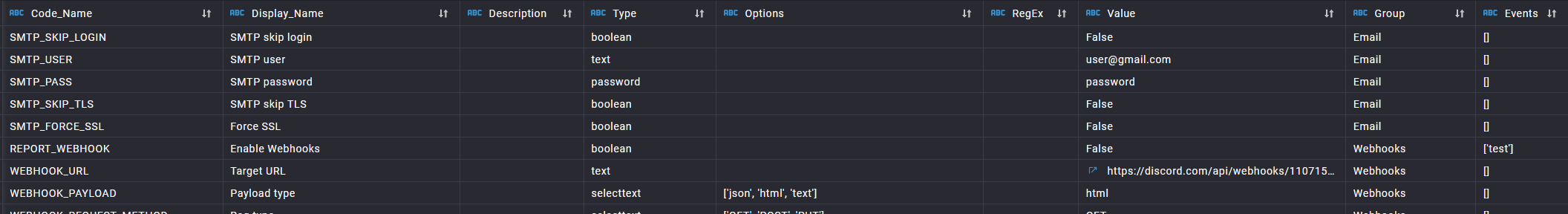

Settings	Database representation of the sum of all settings from app.conf and plugins coming from config.json files.
