Subnets configuration for arp-scan

You need to specify the network interface and the network mask. You can also configure multiple subnets and specify VLANS (see exceptions below).

Examples

Examples for one and two subnets (❗ Note the ['...', '...'] format):
- One subnet: SCAN_SUBNETS = ['192.168.1.0/24 --interface=eth0']
- Two subnets: SCAN_SUBNETS = ['192.168.1.0/24 --interface=eth0', '192.168.1.0/24 --interface=eth1 -vlan=107']

Explanation

Network mask

Example value: 192.168.1.0/24

The arp-scan time itself depends on the number of IP addresses to check.

The number of IPs to check depends on the network mask you set on the SCAN_SUBNETS setting. For example, a /24 mask results in 256 IPs to check, whereas a /16 mask checks around 65,536. Every IP takes a couple of seconds. This means that with an incorrect configuration, the arp-scan will take hours to complete instead of seconds.

Specify the network filter (which significantly speeds up the scan process). For example, the filter 192.168.1.0/24 covers IP ranges 192.168.1.0 to 192.168.1.255.

Network interface (adapter)

Example value: --interface=eth0

The adapter will probably be eth0 or eth1. (Run iwconfig in the container to find your interface name(s))

Run iwconfig in your container to find your interface name(s) (e.g.: eth0, eth1).

VLANs

Example value: -vlan=107

Append e.g.: -vlan=107 to the interface field (e.g.: eth0 -vlan=107) for multiple vlans. More details in this comment in this issue

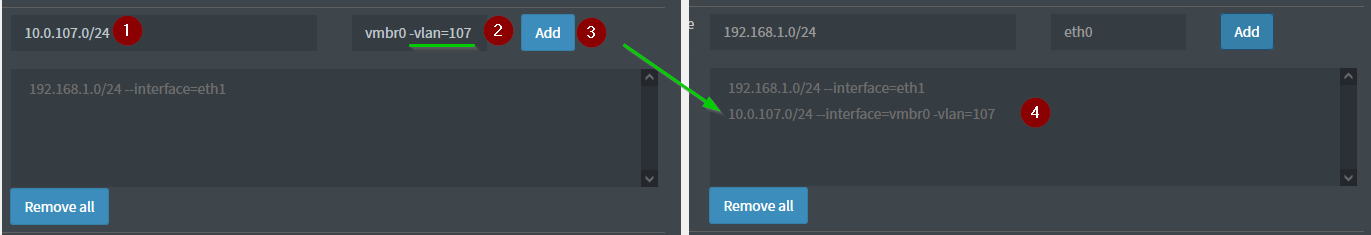

VLAN 🔍Example:

Support for VLANS (& exceptions)

Please note the accessibility of the macvlans when they are configured on the same computer. My understanding this is a general networking behavior, but feel free to clarify via a PR/issue.

Pi.Alert does not detect the macvlan container when it is running on the same computer.
Pi.Alert recognizes the macvlan container when it is running on a different computer.
