NetAlertX/front/plugins/omada_sdn_openapi

🔍 Overview

• This plugin imports online devices and clients from the Omada SDN (Omada Controller) through the provided OpenAPI.

✨ Features

1. Import online devices (gateways, switches, and access points) compatible with Omada SDN and send them to NetAlertX.
2. Import online clients (e.g., computers and smartphones) and send them to NetAlertX.

📌 Requirements

• Omada Controller with Open API support.

✅ Officially supported controllers - Source

• All Omada Pro versions support Open API
• Omada Software/Hardware Controller support Open API since Controller v5.12

⚙️ Setup guide & settings

1. Login to your Omada Controller.
2. In the Global Dashboard, navigate to Settings, select Platform Integration, then click on Open API.
3. Create new credentials by clicking Add New App.
   • The App Name can be anything.
   • Set the Mode to Client.
   • Set the Role to Viewer or Administrator.
   • For Site Privileges, choose All (Including all new-created sites) or select specific site(s).
   • Click Apply to create the application.
4. From the created application, you will need the following fields.
   • Omada ID - visible by clicking the eye icon next to the edit and delete buttons.
   • Client ID
   • Client Secret
5. Open NetAlertX's Settings, head to Omada SDN using OpenAPI (OMDSDNOPENAPI) and configure the plugin.
   • OMDSDNOPENAPI_RUN - When the scan should run, good option is schedule.
   • OMDSDNOPENAPI_host - Specify the host URL of your Omada Controller, including the protocol, e.g., https://example.com:1234.
   • OMDSDNOPENAPI_omada_id - Enter the Omada ID obtained in the previous step.
   • OMDSDNOPENAPI_client_id - Enter the Client ID obtained in the previous step.
   • OMDSDNOPENAPI_client_secret - Enter the Client Secret obtained in the previous step.
   • OMDSDNOPENAPI_sites (optional) - You can enter either the site name or site ID. If an invalid value is provided or neither is specified, the plugin will default to the first accessible site using the supplied credentials.
   • OMDSDNOPENAPI_verify_ssl - Check this option to enable SSL verification for requests to your Omada Controller's OpenAPI. If unchecked, SSL verification will be disabled.

📋 Data populated by the plugin

• This table outlines the data fields populated by the plugin, their conditions, descriptions, and where they are visible.

🔹 Field	🔄 Population Condition	📖 Description	👀 Visibility
MAC	Always populated	The device's unique MAC address	Device details
Last IP	Always populated	The device's assigned IP address	Device details
Name	Always populated	The device name retrieved from Omada	Device details
Parent Node	Only if available	MAC address of the parent device (switch, AP, or gateway)	Device details
Parent Node Port	Only if available	The port number used to connect to the parent device	Device details
SSID	Only if available	The SSID through which the device is connected	Device details
Device Type	Only if available	Detected device type (e.g., iPhone, PC, Android)	Device details
Last Seen	Always populated	Last recorded time the device was active on the network	Plugin details
Omada Site	Always populated	Omada site to which the device is assigned	Device details
VLAN ID	Only if available	VLAN ID assigned to the device	Plugin details

⚠️ Limitations and warnings

• The plugin can fetch up to 1000 devices and 1000 clients from the Omada Controller.
• Using non-Omada SDN compatible devices (e.g., switches, APs) may result in incomplete or inaccurate data.

🖼️ Examples

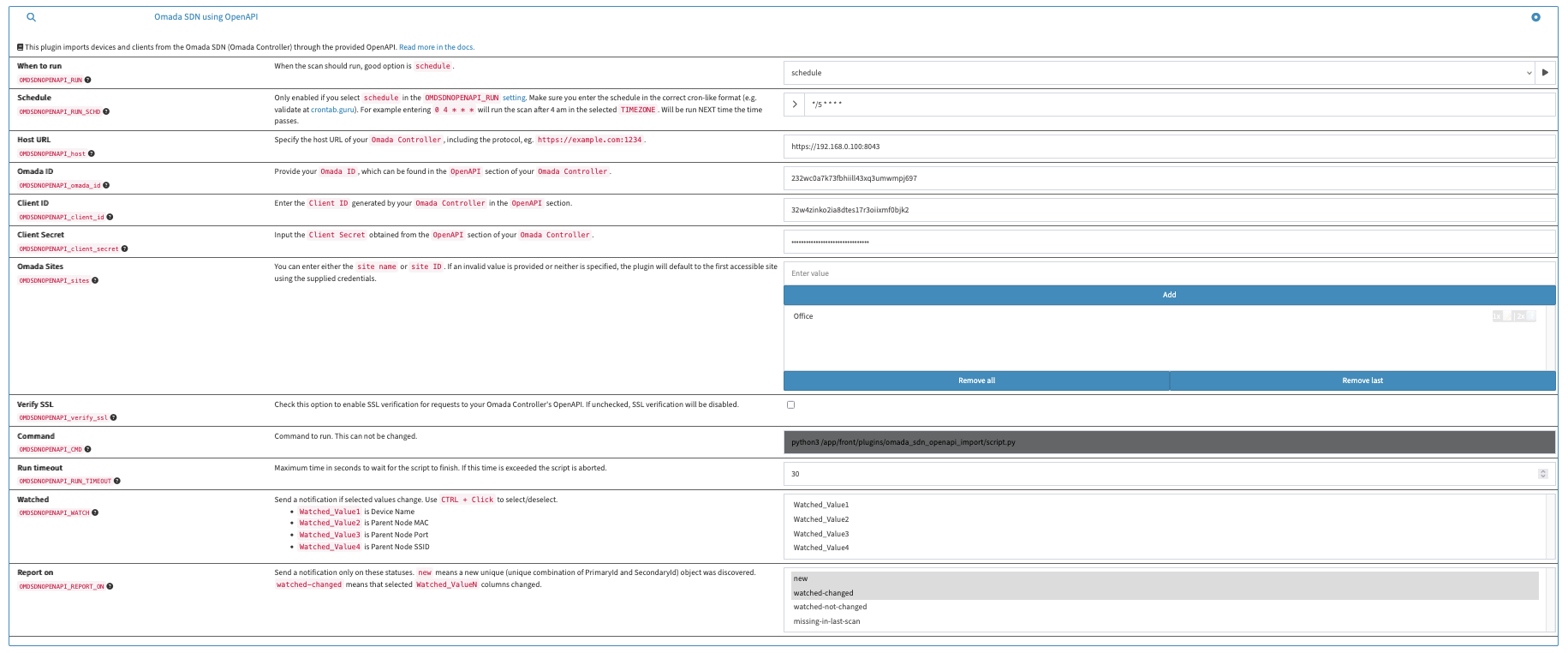

• Settings:

•

ℹ️ Other info

• Version: 1.0
• Author : xfilo
• Release Date: 24-February-2025
• Omada Open API documentation: https://use1-omada-northbound.tplinkcloud.com/doc.html#/home (may take a moment to load)
