Sessions Section – Device View

The Sessions Section shows a device’s connection history. All data is automatically detected and cannot be edited.

---

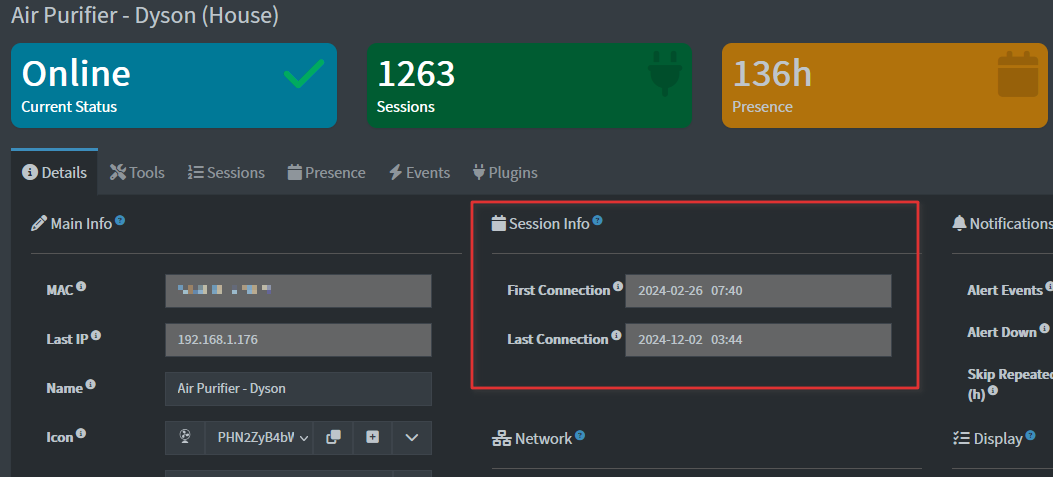

Key Fields

Field	Description	Editable?
First Connection	The first time the device was detected on the network.	❌ Auto-detected
Last Connection	The most recent time the device was online.	❌ Auto-detected

---

How Session Information Works

1. Detecting New Devices

• New devices are automatically detected when they first appear on the network.
• A New Device record is created, capturing the MAC, IP, vendor, and detection time.

2. Recording Connection Sessions

• Every time a device connects, a session entry is created.

• Captured details include:

  • Connection type (wired or wireless)
  • Connection time
  • Device details (MAC, IP, vendor)

3. Handling Missing or Conflicting Data

• Triggers: Devices are flagged when session data is incomplete, inconsistent, or conflicting. Examples include:

  • Missing first or last connection timestamps
  • Overlapping session records
  • Sessions showing a device as connected and disconnected at the same time

• System response:

  • Automatically highlights affected devices in the Sessions Section.

  • Attempts to infer missing information from available data, such as:

    • Estimating first or last connection times from nearby session events
    • Correcting overlapping session periods
    • Reconciling conflicting connection statuses

• User impact:

  • Users do not need to manually fix session data.
  • The system ensures the device’s connection history remains as accurate as possible for monitoring and reporting.

4. Updating Sessions

• Reconnect: Updates session with the new connection timestamp.
• Disconnect: Records disconnection time and marks the device as offline.

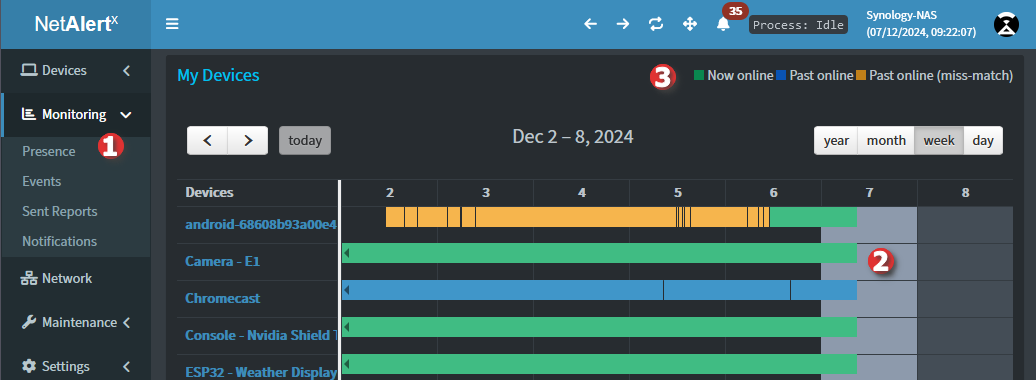

This session information feeds directly into Monitoring → Presence, providing a live view of which devices are currently online.
